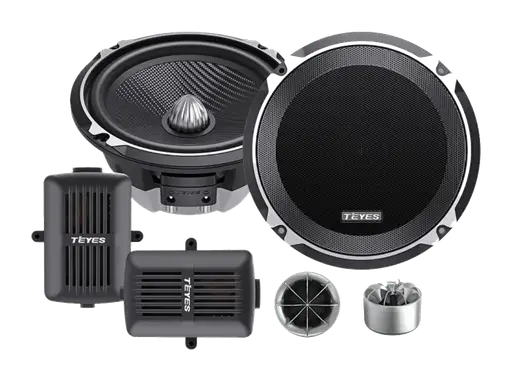

T3-652
6.5" 2-Way Passive Speaker
T3 · T6 speakers · 10-inch subwoofer drivers
TEYES Car Speakers & Subwoofer Drivers
Detail in Every Note.
The range combines six T3 and T6 component, active 3-way and coaxial speakers with five standalone 10-inch subwoofer drivers for custom low-frequency installations.
View models & specs
Product lineup
Explore the speaker and subwoofer driver lineup.
Open any product for a focused detail view with its complete applicable specifications, or continue to the comparison tables below to compare models side by side.

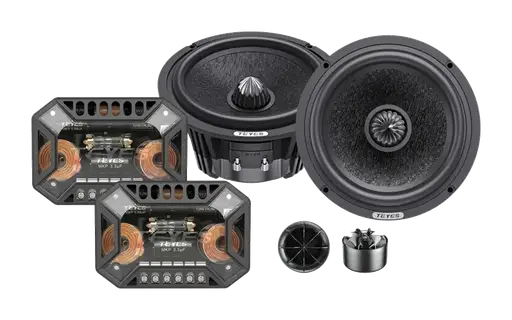

T6-652
6.5" 2-Way Passive Speaker

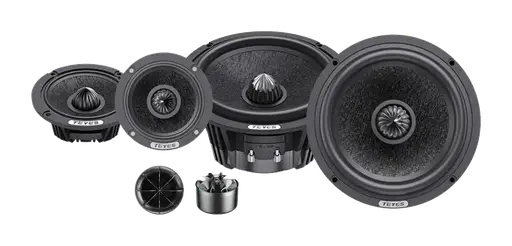

T6-653A
6.5" 3-Way Active Speaker

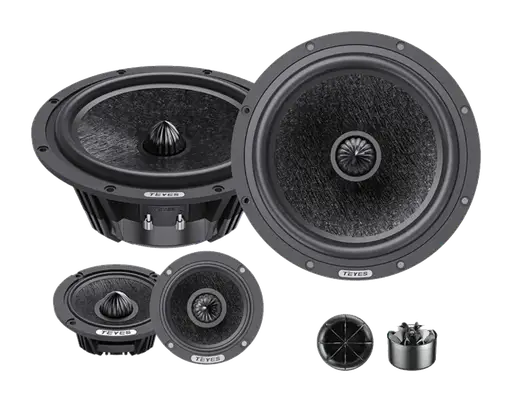

T6-803A
8" 3-Way Active Speaker

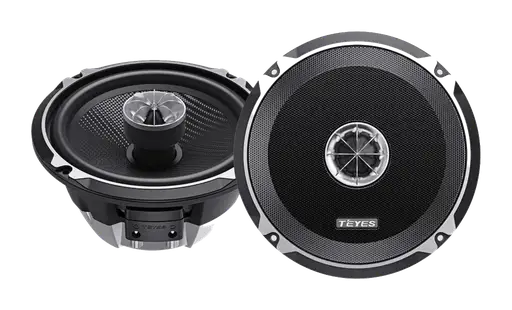

T3-65X
Coaxial Speaker

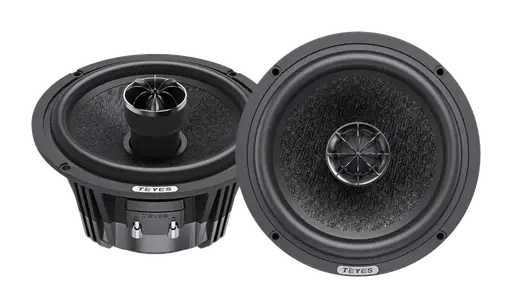

T6-65X
Coaxial Speaker

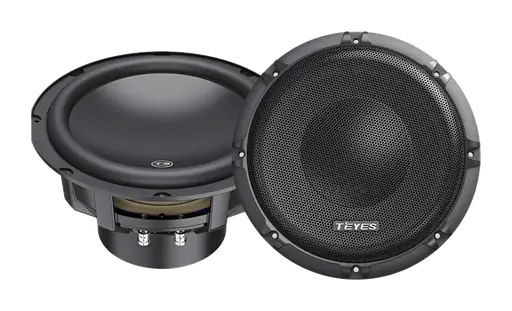

10T3-D4
10" Standard-Depth Subwoofer Driver
10T3S-V4
10" Thin-Line Subwoofer Driver

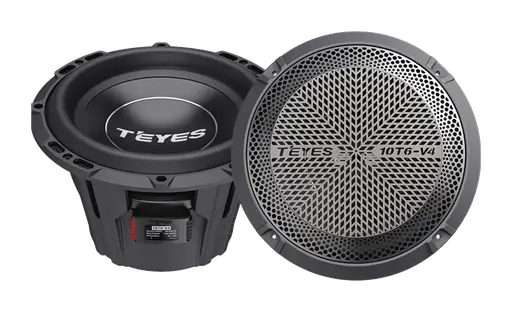

10T6-V4
10" Standard-Depth Subwoofer Driver

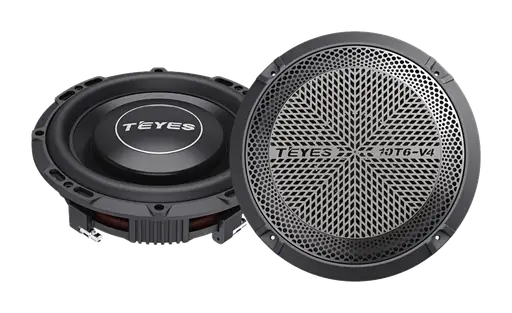

10T6S-V4
10" Thin-Line Subwoofer Driver

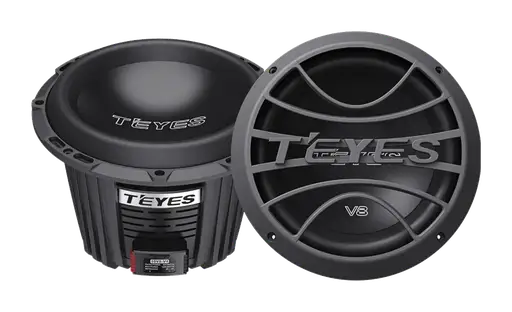

10V8-V4
10" Competition Subwoofer Driver
Range structure
Four product families for cabin detail and low-frequency depth.
Component and coaxial speakers cover cabin listening, while standard-depth, thin-line and competition drivers extend the range into custom bass installations.
Component Speakers
Detail in Every Note.
T3-652, T6-652, T6-653A and T6-803A cover passive and active multi-way cabin speaker formats.
Coaxial Speakers
Music for Every Drive.
T3-65X and T6-65X provide integrated coaxial speaker choices for straightforward cabin upgrades.
Standalone Subwoofer Drivers
Depth You Can Feel.
10T3-D4, 10T3S-V4, 10T6-V4 and 10T6S-V4 cover standard-depth and thin-line custom enclosure formats.
V8 Competition
Built for Impact.
10V8-V4 forms the competition tier with 600 W rated power, 16 mm X-MAX and a CCAW voice coil.
Technical comparison
Compare speakers and standalone subwoofer drivers.
The same structured product data powers these tables and the on-demand product detail views above, keeping each published specification aligned with its model.
Component and active speakers
| Model | Type | Rated | Max | Impedance | Sensitivity | Frequency response | Mounting depth |
|---|---|---|---|---|---|---|---|
| T3-652 | 6.5" 2-Way Passive | 100 W | 200 W | 4 Ω | 89 dB | 65 Hz-22 kHz | 71 mm |
| T6-652 | 6.5" 2-Way Passive | 120 W | 240 W | 4 Ω | 89 dB | 55 Hz-25 kHz | 77.5 mm |
| T6-653A | 6.5" 3-Way Active | 150 W | 300 W | 4 Ω | 89 dB | 55 Hz-25 kHz | 77.5 mm |
| T6-803A | 8" 3-Way Active | 180 W | 360 W | 4 Ω | 91 dB | 53 Hz-25 kHz | 77.5 mm |
Coaxial speakers
| Model | Type | Rated | Max | Impedance | Sensitivity | Frequency response | Mounting depth |
|---|---|---|---|---|---|---|---|
| T3-65X | Coaxial | 100 W | 200 W | 4 Ω | 89 dB | 63 Hz-22 kHz | 71 mm |
| T6-65X | Coaxial | 120 W | 240 W | 4 Ω | 89 dB | 55 Hz-25 kHz | 77.5 mm |
Standalone 10-inch subwoofer drivers
| Model | Type | Rated | Max | Impedance | Sensitivity | Frequency response | Mounting depth | X-MAX | Voice coil |
|---|---|---|---|---|---|---|---|---|---|
| 10T3-D4 | 10" Standard-depth | 400 W | 800 W | 4 Ω | 85 dB | 31.5 Hz-400 Hz | 148.5 mm | N/A | N/A |
| 10T3S-V4 | 10" Thin-line | 400 W | 800 W | 4 Ω + 4 Ω | 84 dB | 30 Hz-400 Hz | 89 mm | N/A | N/A |
| 10T6-V4 | 10" Standard-depth | 500 W | 1000 W | 4 Ω + 4 Ω | 85 dB | 29 Hz-400 Hz | 160.5 mm | N/A | N/A |
| 10T6S-V4 | 10" Thin-line | 400 W | 800 W | 4 Ω + 4 Ω | 85 dB | 28 Hz-400 Hz | 84 mm | N/A | N/A |
| 10V8-V4 | 10" Competition | 600 W | 1200 W | 4 Ω + 4 Ω | 84 dB | 30 Hz-400 Hz | 165 mm | 16 mm | CCAW |
B2B cooperation
Request the TEYES speaker and subwoofer driver range for your market.
Contact TEYES for wholesale product information and the current model list for your channel.
