TS-08
8" Under-Seat Enclosed Subwoofer
Under-seat · sealed · ported
TEYES Enclosed Car Subwoofers
Bass That Moves You.
Compact TS under-seat systems and birch-plywood sealed or ported enclosures cover integrated, active and passive bass installations without mixing in standalone subwoofer drivers.
View models & specs
Product lineup
Explore the enclosed subwoofer lineup.
Open any product for a focused detail view with its complete applicable specifications, or continue to the comparison tables below to compare models side by side.
TS-10
10" Under-Seat Enclosed Subwoofer
BXA3/10T3S/V4
10" Active Sealed Enclosed Subwoofer
BX1/10T3S/V4
10" Passive Sealed Enclosed Subwoofer
BX2/10T3S/V4
10" Passive Ported Enclosed Subwoofer
BX4/10T3/D4
10" Passive Ported Enclosed Subwoofer
Enclosed formats
Under-seat, sealed and ported subwoofers in one enclosed-system category.
TS models provide compact integrated under-seat bass, while BXA3 and BX enclosures cover sealed, ported, active and passive installation formats.
Under-Seat Subwoofers
Big Bass. Small Footprint.
TS-08 and TS-10 integrate the enclosure into a compact 77 mm-high format for space-sensitive installations.
Boxed Enclosed Subwoofers
Bass That Moves You.
BXA3 and BX models provide active and passive sealed or ported birch-plywood enclosure choices.
Technical comparison
Compare all enclosed subwoofer formats.
Under-seat performance data and boxed-enclosure construction data remain separated into the parameter sets published for each product format.
Under-seat enclosed subwoofers
| Model | Type | Rated | Max | Sensitivity | Frequency response | Frequency control | Dimensions | Net weight |
|---|---|---|---|---|---|---|---|---|

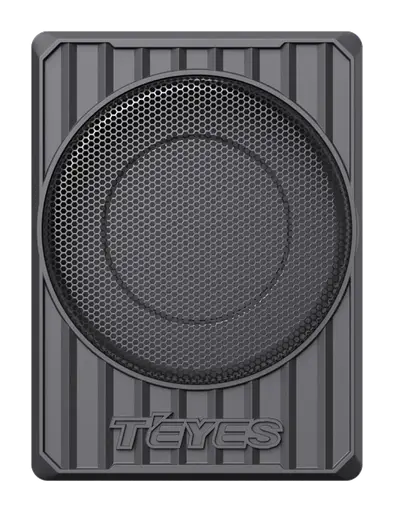

| TS-08 | 8" Under-Seat Enclosed Subwoofer | 260 W | 520 W | 85 dB | 35 Hz-150 Hz | 20 Hz-150 Hz | 284 × 210 × 77 mm | 5.5 kg |

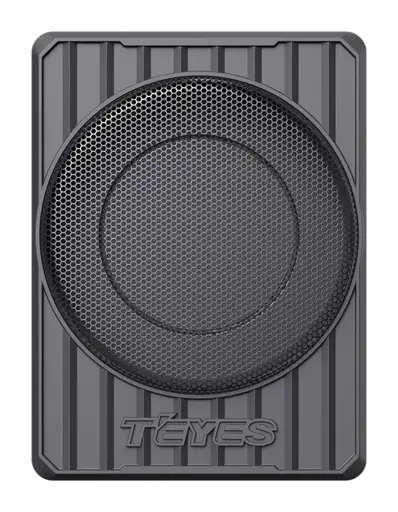

| TS-10 | 10" Under-Seat Enclosed Subwoofer | 260 W | 520 W | 85 dB | 25 Hz-150 Hz | 20 Hz-150 Hz | 314 × 235 × 77 mm | 6.5 kg |
Sealed and ported boxed subwoofers
| Model | Type | Enclosure | Surface treatment | Dimensions | Net weight |
|---|---|---|---|---|---|

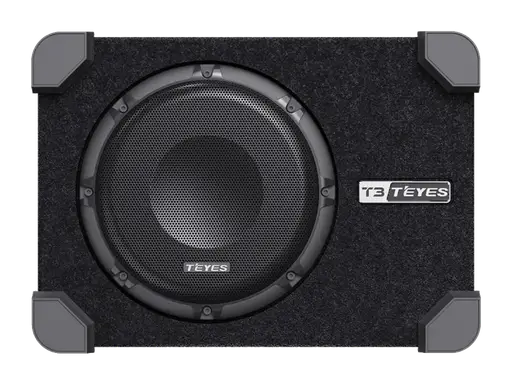

| BXA3/10T3S/V4 | 10" Active Sealed | Birch plywood | Black felt covering | 460 × 340 × 139 mm | 13 kg |

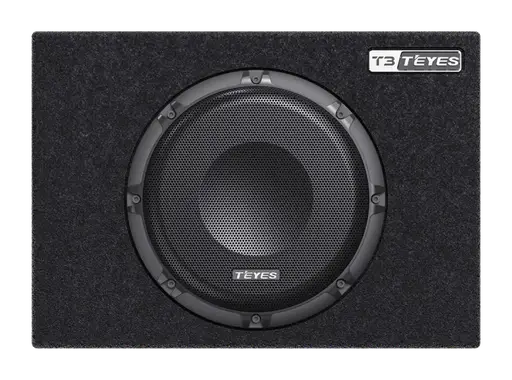

| BX1/10T3S/V4 | 10" Passive Sealed | Birch plywood | Black felt covering | 460 × 340 × 139 mm | 13 kg |

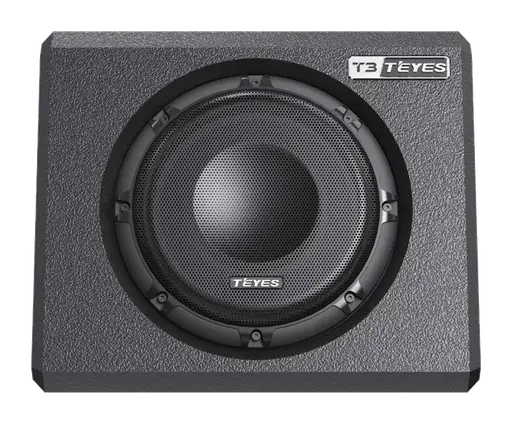

| BX2/10T3S/V4 | 10" Passive Ported | Birch plywood | Polyurea paint | 323 × 330 × 400 mm | 13 kg |

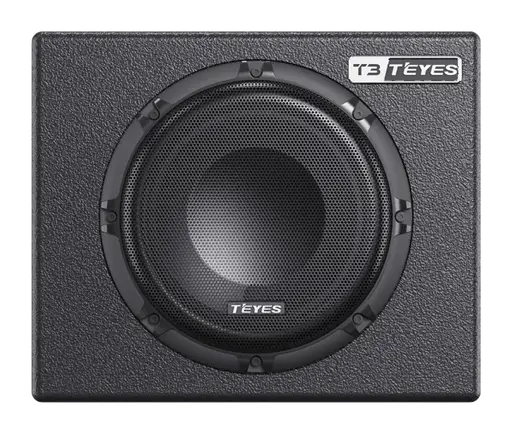

| BX4/10T3/D4 | 10" Passive Ported | Birch plywood | Polyurea paint | 240 × 355 × 430 mm | 15 kg |
B2B cooperation
Request the TEYES enclosed subwoofer range for your market.
Contact TEYES for wholesale product information and the current model list for your channel.
